Description
The Bell XR7 is the next evolution of the trusted GP3. Crafted with a ultra-lightweight premium carbon composite shell, the XR7 balances lightweight construction with rugged impact performance. A multi-density liner system maximizes energy absorption and comfort. The optical-grade DSAF shield eliminates fog even in wet or humid conditions, giving racers the clarity they need to focus ahead.
- Ultra-lightweight premium carbon shell for maximum strength-to-weight performance
- Advanced multi-density, multi-piece liner for optimal energy absorption and impact protection
- Optical-grade Double Screen Anti-Fog (DSAF) visor for high-performance visibility and reliable anti-fog control
- Versatile, direct flow ventilation system combining upper chin bar vents and lower chin bar air intake vents to maximize airflow with adjustable upper air intake vents for controlled airflow
- Integrated face piece channels allow for easy installation of drinking tube and radio systems without affecting helmet fit or comfort
- Interior parts kit accessories available for configuration to ear cup version or cheek pad as required
- Synthetic rubber gasket seal to prevent dirt and water from entering the helmet
- Factory-installed Hans anchors included as standard
- Shield and pivot kit: SE07 3MM, SV(SE07)
- Equipped with Bell Racing SmartLock Mechanism

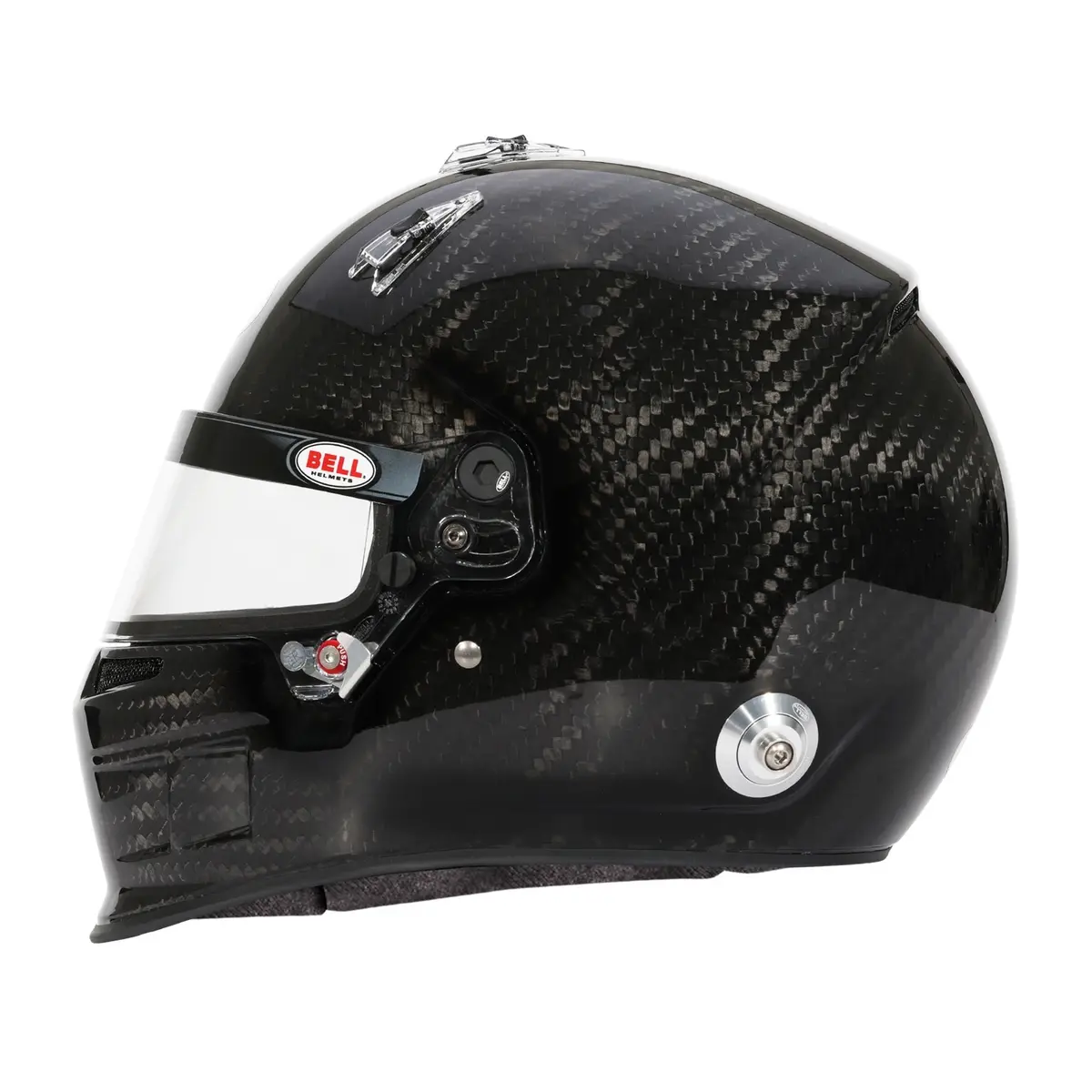

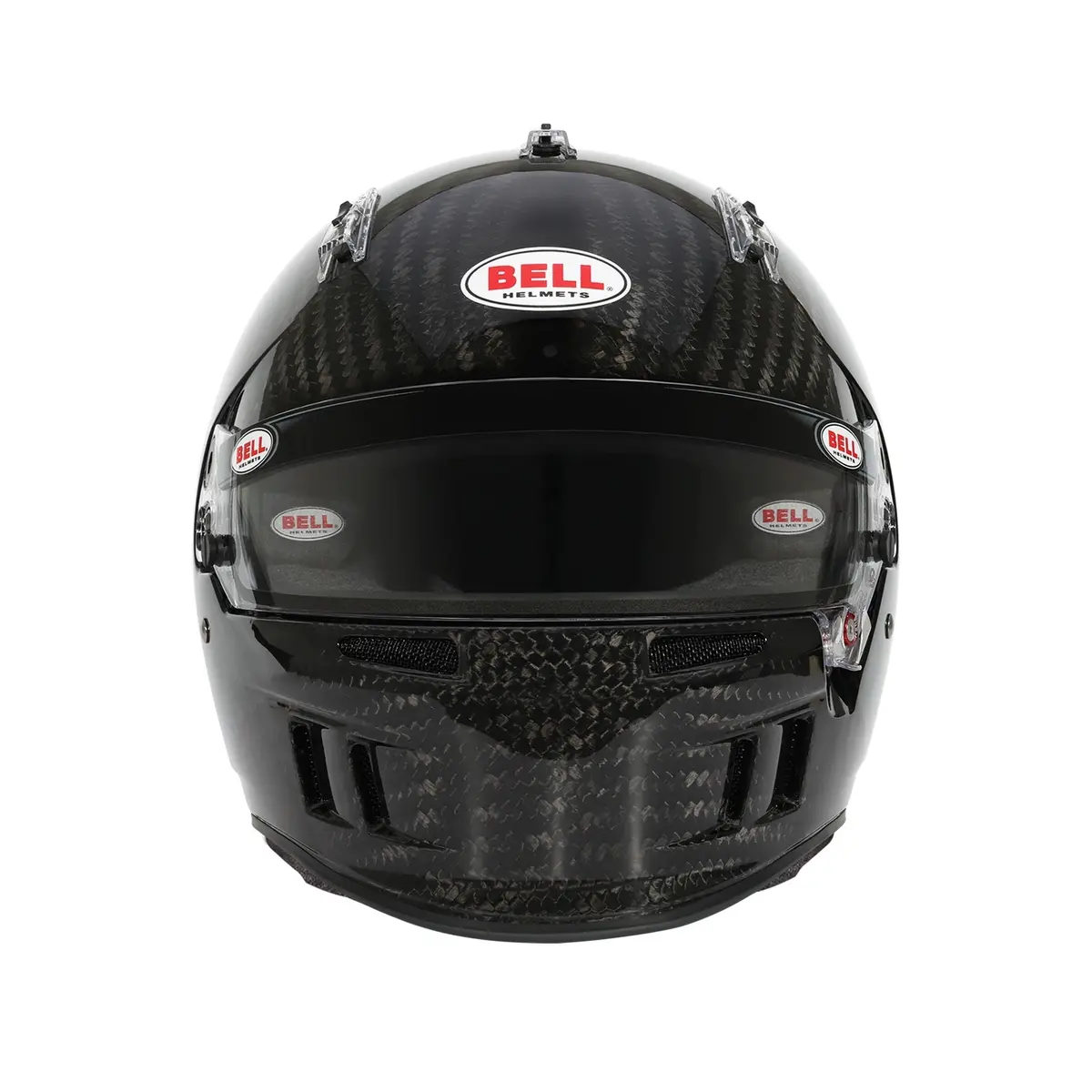

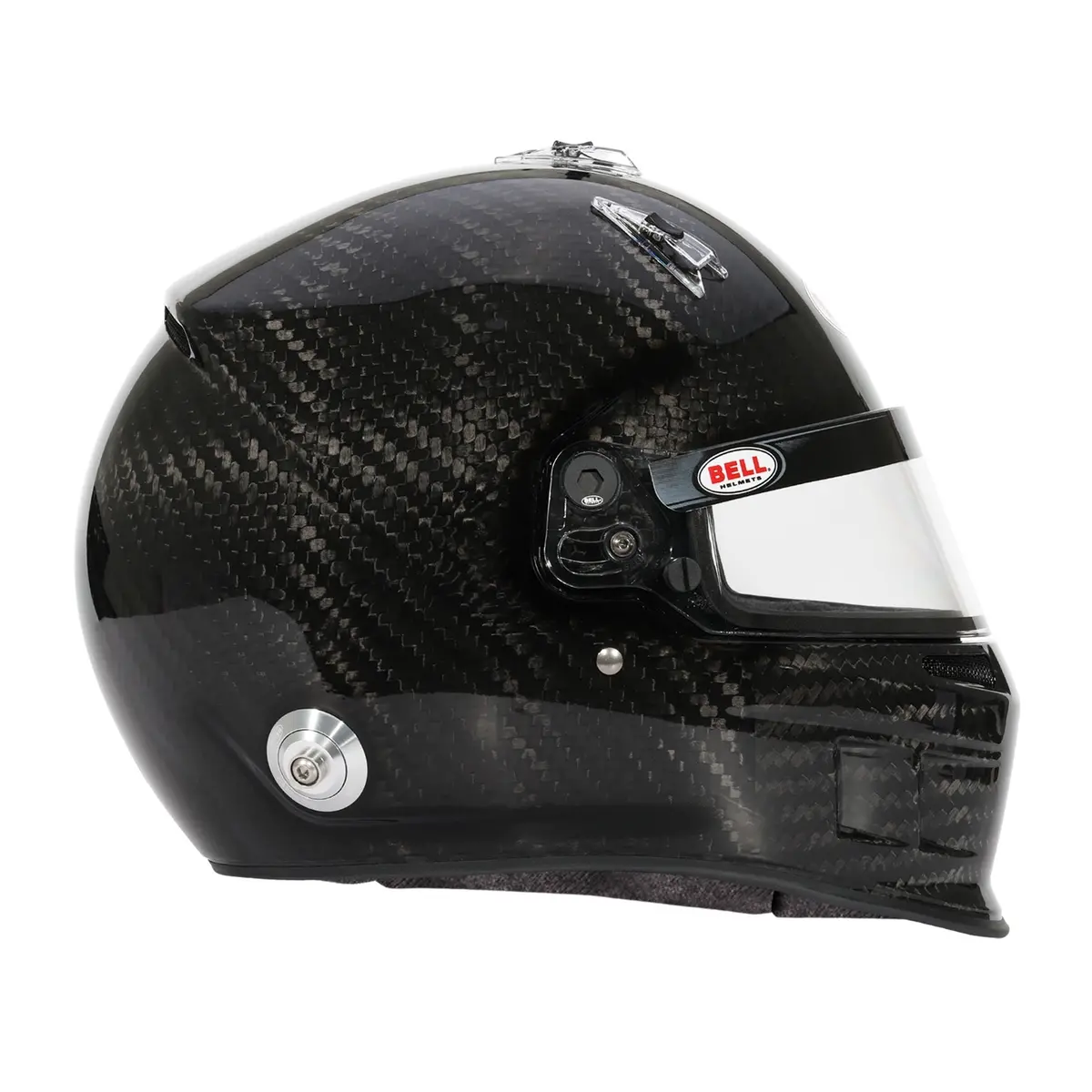

Helmet, XR7 Carbon, Full Face, Snell SA2025, FIA Approved, Head and Neck Support Ready, Carbon Fiber
Specifications
| Brand | Bell |
| Part Number | 126500 |
| Product Line | XR7 Carbon |
| Helmet Sizes | S-2XL |
| Circumferences (Metric) | 57 cm – 61+ cm |
| Open/Closed Face | Closed |
| Vent System | Yes |
| Snell Rating | SA2025 |
| FIA Approved | Yes |
| Head and Neck Support Ready | Yes |
| Shield Included | Yes |
| Shield Color | Clear |
| SmartLock Equipped | Yes |
| Anti-fog Shield | Yes |
| Pad Lining Color | Black |
| Bag Included | Yes |
| Gloss/Flat | Gloss |
| Material | Carbon Fiber |
| Color | Natural |
| Finish | Clearcoat |
| Quantity | Each |
Size Chart
Bell Helmet Size Chart
| Standard Size | Hat Size | Inches | Centimeters |
|---|---|---|---|
| 4XS | 6 3/8 | 20 1/16 | 51 |
| 3XS | 6 1/2 – 6 5/8 | 20 1/2 – 20 7/8 | 52-53 |
| 2XS | 6 3/4 – 6 7/8 | 21 1/2 – 21 5/8 | 54-55 |
| XS | 7 | 22 | 56 |
| S | 7 1/8 | 22 3/8 | 57 |
| M | 7 1/4 – 7 3/8 | 22 3/4 – 23 1/4 | 58-59 |
| L | 7 1/2 | 23 5/8 | 60 |
| XL | 7 5/8 – 7 3/4 | 24 – 24 3/8 | 61-62 |
| 2XL | 7 7/8 – 8 | 24 3/4 – 25 1/4 | 63-64 |
| 3XL | 8 1/8 – 8 1/4 | 25 5/8 – 26 | 65-66 |
| 4XL | 8 3/8 – 8 1/2 | 26 3/8 – 26 3/4 | 67-68 |
Fitting your Bell Helmet
Proper helmet fit is vital to the performance of a helmet during an impact. For maximum protection the helmet must fit properly with the chin strap securely fastened and provide adequate peripheral vision.
Measuring the head is only a starting point for the entire sizing procedure. Due to varying shapes, heads that are apparently the same size when measured by a tape may not necessarily fit the same size helmet. A small metal tape measure or a cloth tape may be used to make your initial measurement. You can also use a string, which can then be laid against a measuring tape.
The circumference of the head should be measured at a point approximately one inch above the eyebrows in front, and at a point in the back of the head that results in the largest possible measurement. Take several measurements. The largest measurement is the one you want to try on first. If you use a balaclava or head sock, always measure and fit the helmet with it on. Use the Bell sizing chart to determine the size that best matches the head measurement.
Available Sizes
| Size | Part Number |
| 7-1/8- (57- cm) | 1265001 |
| 7-1/8 (57 cm) | 1265002 |
| 7-1/4 (58 cm) | 1265003 |
| 7-3/8 (59 cm) | 1265004 |
| 7-3/8+ (59+ cm) | 1265005 |
| 7-1/2 (60 cm) | 1265006 |
| 7-5/8 (61 cm) | 1265007 |
| 7-5/8+ (61+ cm) | 1265008 |
